CMR RG59 CATV Coaxial Cable 20 AWG CCS 95% AL Braid with Non-Plenum PVC
Quick Detail:
- RG59 CATV Coaxial Cable
- 75 Ohm Coaxial Cable
- 20 AWG CCS Conductor
- Foamed PE Insulation
- 95% AL Braiding
- UL CMR Rated PVC
- Tested to 3.0 GHz
- ISO, CE, RoHS, UL
- 500FT, 1000FT, Wooden Spool, Carton
Description:
KT2017 RG59 CATV Coaxial Cable 20AWG CCS Foamed PE 95% AL Braid PVC CMR
is a specific type of CATV coaxial cable , RG59 (Produced by ZION) is perfect for
digital Cable and Satalite, Attenas, and communication systems. RG59 has a characteristic
impedance of 75 ohms. ZION using best raw material and best worker to produce

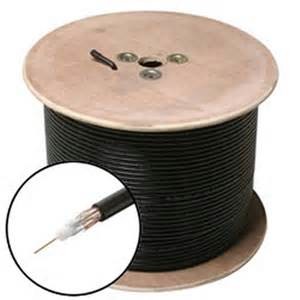

RG59 to meet high performance in practical application. RG59 is packed in 500FT, 1000FT
Plastic / Wooden Spool, and will be layed on pallet to protect the spool and easier carry.
Because of good managing methods, ZION’S price of RG59 is not high although our quality is really high.
Applications:
Suitable for RF signal transmission
■ CATV
■ MATV
■ CCTV
■ Local Area Network
■ Digital video
■ Antennas
| KT2017 RG59 CATV Coaxial Cable 20 AWG CCS B.AL-Foil 95% AL Braid CMR Rated PVC |
| Construction Parameters: |
| Inner Conductor | 0.032"/0.81mm/20AWG | Copper Clad Steel |
| Dielectric | 0.144"/3.66mm | Foamed PE |
| Shield 1 | 0.151"/3.84mm | Bonded Aluminum-Polyproylene |
| Shield 2 | 95% coverage | Aluminum braid wire |
| Jacket | 0.240"±0.006"/6.10±0.15mm | PVC CMR or CMG (UL) |
| Jacket Thickness | 0.032"/0.81mm | |
| Application | For Use in Longer CATV Run Lengths |
| |
| Electrical Characteristics: |
| Inner Cond. Resistance | The Max. at 20℃ shall be < 87 Ω/km 26.5 Ω/1000ft |
| Capacitance | 52 ±3 pF/m 15.8 ±1 pF/ft |
| Impedance | 75 ± 3 Ω |
| Return loss | between 5 and 1000MHz: > 22dB |
| Velocity of Propagation | 0.85 |
| Sparker Test (VAC) | 4 |
| |
| Attenuation(20℃): |
Frequency
(MHZ) | Max Attenuation
(dB/100ft) | Max Attenuation
(dB/100m) |
| 5 | 0.86 | 2.82 |
| 55 | 2.05 | 6.73 |
| 83 | 2.45 | 8.04 |
| 187 | 3.60 | 11.81 |
| 211 | 3.80 | 12.47 |
| 250 | 4.10 | 13.45 |
| 300 | 4.45 | 14.60 |
| 350 | 4.80 | 15.75 |
| 400 | 5.10 | 16.73 |
| 450 | 5.40 | 17.72 |
| 500 | 5.70 | 18.70 |
| 550 | 5.95 | 19.52 |
| 600 | 6.20 | 20.34 |
| 750 | 6.97 | 22.87 |
| 865 | 7.52 | 24.67 |
| 1000 | 8.12 | 26.64 |
| |
| Mechanical and Environmental Properties |
| Cable bend radius | 10 times the cable diameter |
| Operating Temp Range | -20 ℃ to 60℃ |
| Cable diamensions | 0.242''±0.006''/ 6.15±0.15 mm PVC CMR or CMG(UL) |
| |
| Order Informations: |
| Marking | ZION KT2017 RG59 95% AL PVC CMR CATV COAXIAL CABLE ×××M/FT |
| Package | 500FT, 1000FT, Wooden Spool, Carton, Pallet |
| Delivery time | Normally 25 days after received the deposit. |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and KINGTONE.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
